how fast are my blits?
Blitting a 5 bitplane 64x65 rectangle with the cookie cut (4 active DMA changes) function probably isn't going to be very fast.
How fast is it ?
I added a feature to imagecon to generate a greyscale version of the palette.
Then in the main loop I now: * wait for the vertical blank * set the greyscale palette * do some blits * set the color palette
.mainLoop:
bsr waitVerticalBlank
bsr installGreyscalePalette
move.l #4,d0 ; blit the object 5 times each frame
.blitLoop:
bsr moveBlitterObject
dbra d0,.blitLoop
bsr.s installColorPalette
bra.s .mainLoop
So when the screen changes to color, that's how many scan lines we have used blitting stuff.
There is a variable in the Makefile that sets the number of colors. This automatically creates the correct bitplane and palette data as well as reconfiguring the example. So now we can see what impact the number of bitplanes has on blit speed.
So here we can see the results:

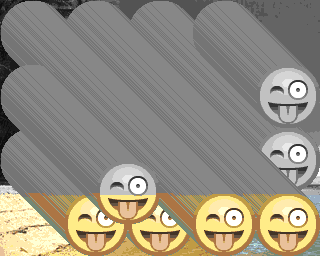

5 bitplanes
At 5 bitplanes we don't have enough time to do 5 blits.

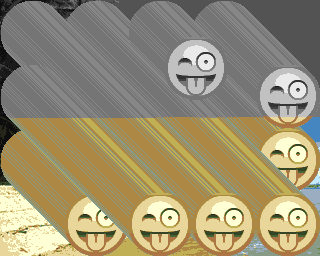

4 bitplanes

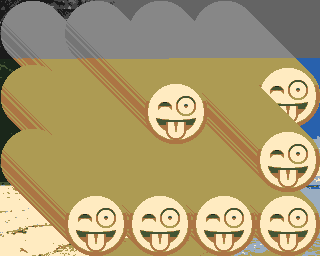

3 bitplanes

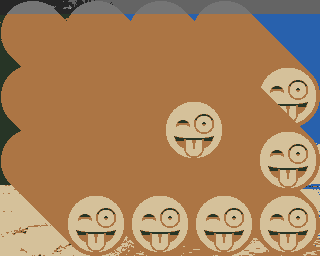

2 bitplanes

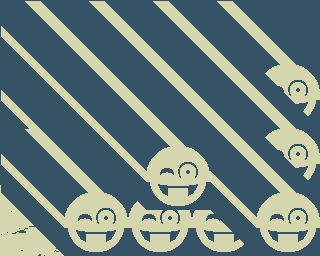

1 bitplanes
Lots of time left over with 1 bitplane :-D
